Audio DSP Processors
Audio DSP Processors

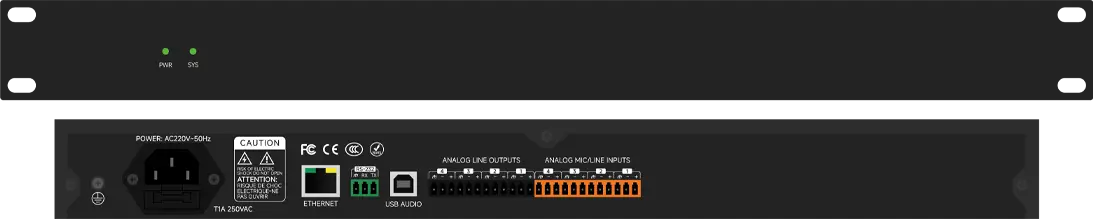

DA-0404
DSP MAtrix Processor
- 4 Mic/Line to 4 Line inputs
- Fixed Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, dodge, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ

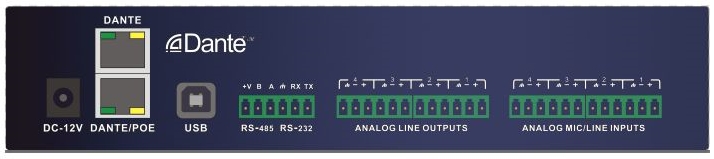

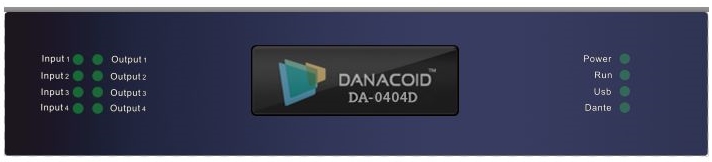

DA-0404
DSP MAtrix Processor
- 4 Mic/Line to 4 Line inputs
- Fixed Architecture DSP

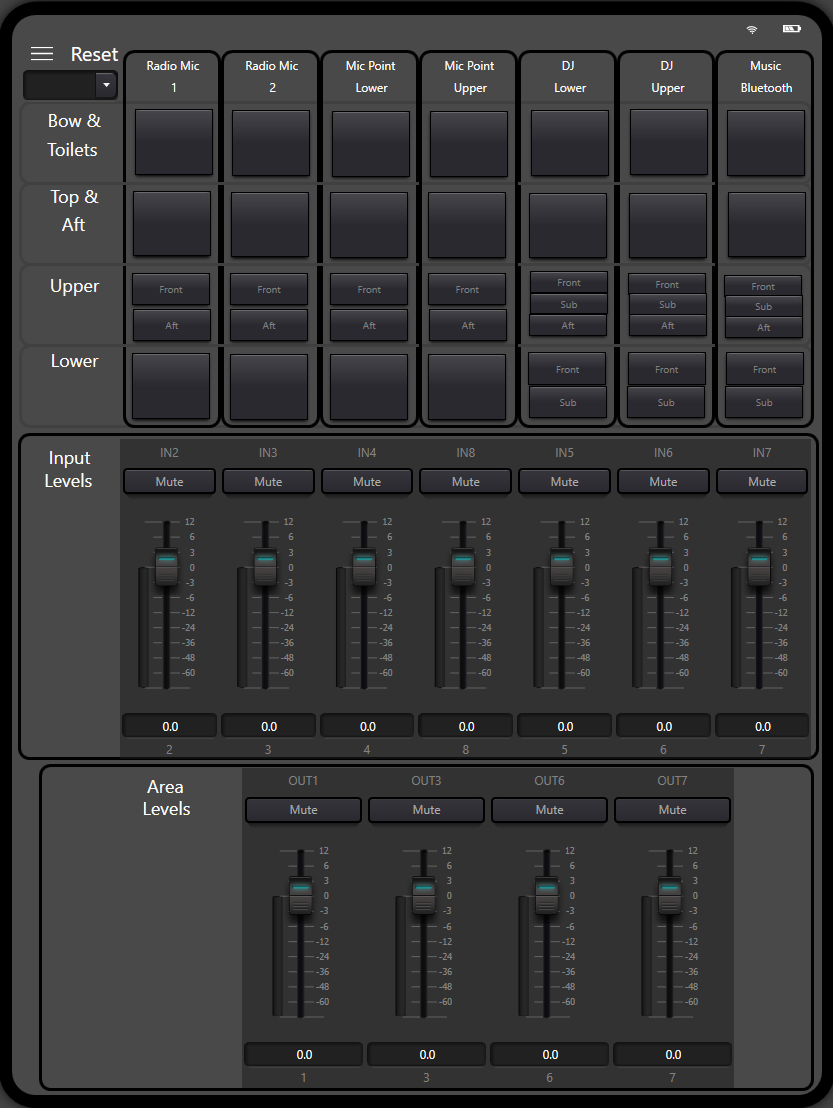

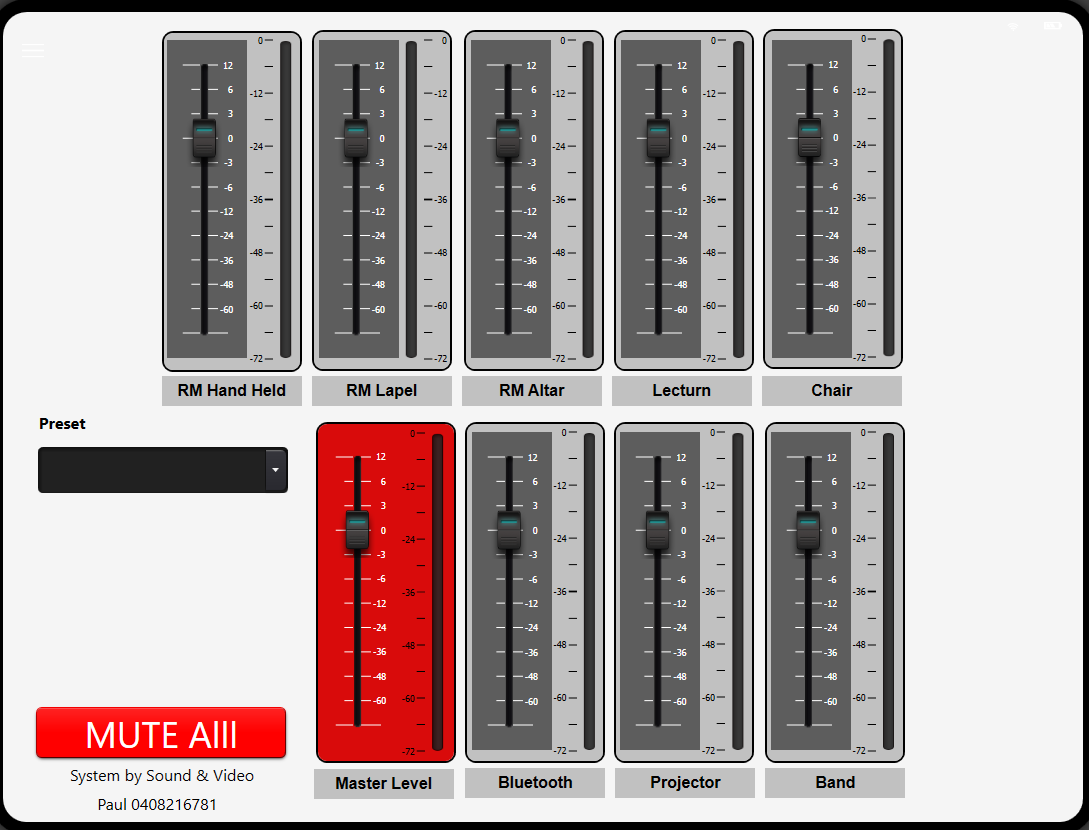

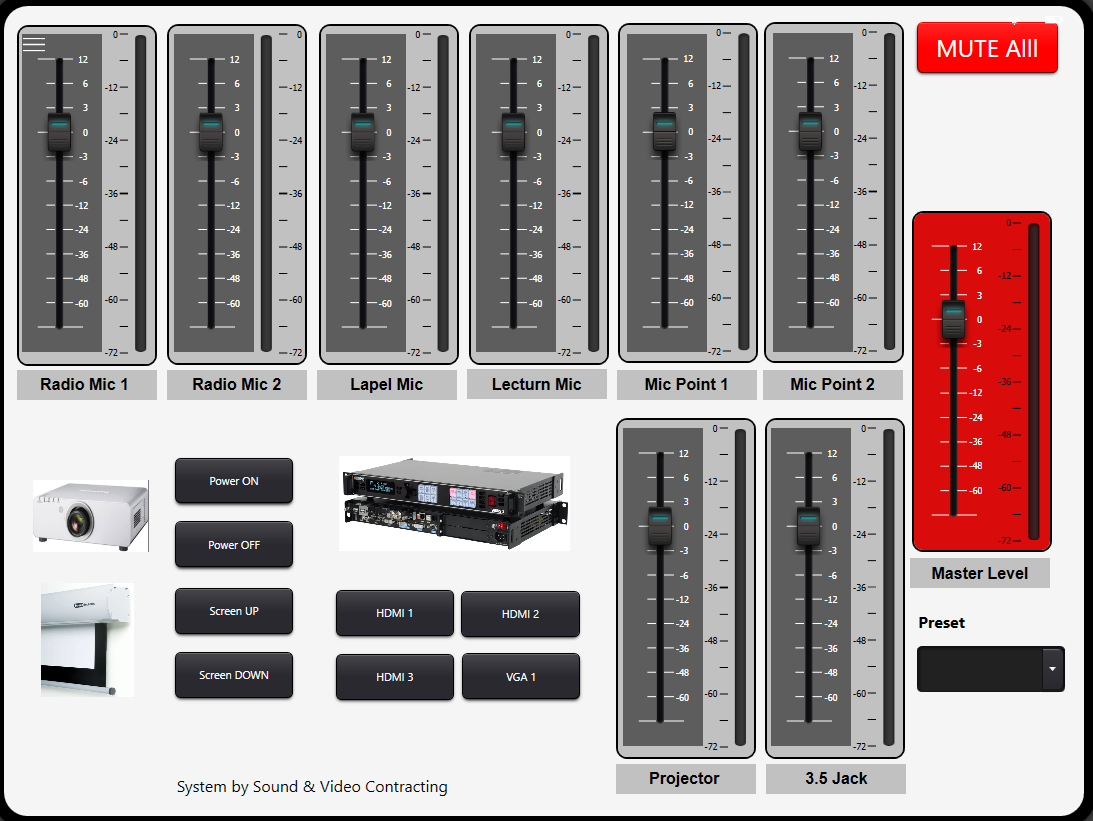

- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, dodge, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
Frequency response | 20Hz - 20KHz +/- 0.2dB |
THD 1khz | <0.003% |
Input Impedance balanced | Mic 600Ω Line 10kΩ |
Signal to Noise Ratio | 66dB Mic 80dB Aux |
Samping | 48Khz |
Phantom Power | Yes |
Input sensitivity | Mic 5mV Aux 350mV |
Load | 100Ω or 4Ω |
Fans | Variable Side to rear |
Protection | Soft start, start, Overheat, Short circuit, Mute on/off |
Power | 220-240V + 24VDC |

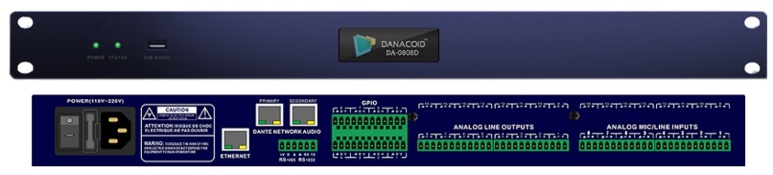

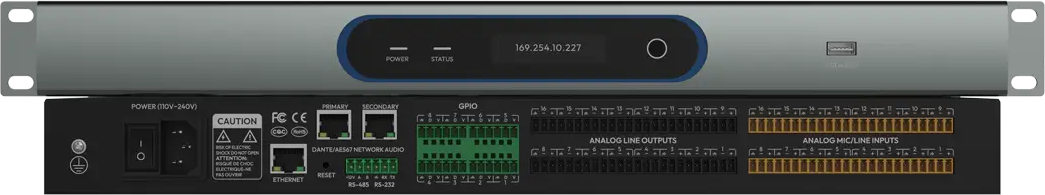

DA-0808
DSP MAtrix Processor
- 8 Mic/Line to 8 Line inputs
- Fixed Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, dodge, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
DA-0808
DSP MAtrix Processor
- 8 Mic/Line to 8 Line inputs
- Fixed Architecture DSP
- Customisable user interface for Android, iPad and Windows
- Inputs, expander, compressor, automatic gain, dodge, noise gate, noise gain compensation, delay device EQ
- Output channel support high-low pass, delay, limiter EQ
Frequency response | 20Hz - 20KHz +/- 1dB |
THD 1khz | |
Input Impedance balanced | Mix 600Ω Line 10kΩ |
Signal to Noise Ratio | Min input 65dB Line 85dB |
Damping factor | N'A |
Slew rate | N/A |
Input sensitivity | 0.775V |
Output | 1V/600Ω |
Fans | N/A |
Protection | N/A |
Phantom Power | 48V |
Power Suypply | 110V or 240V |
