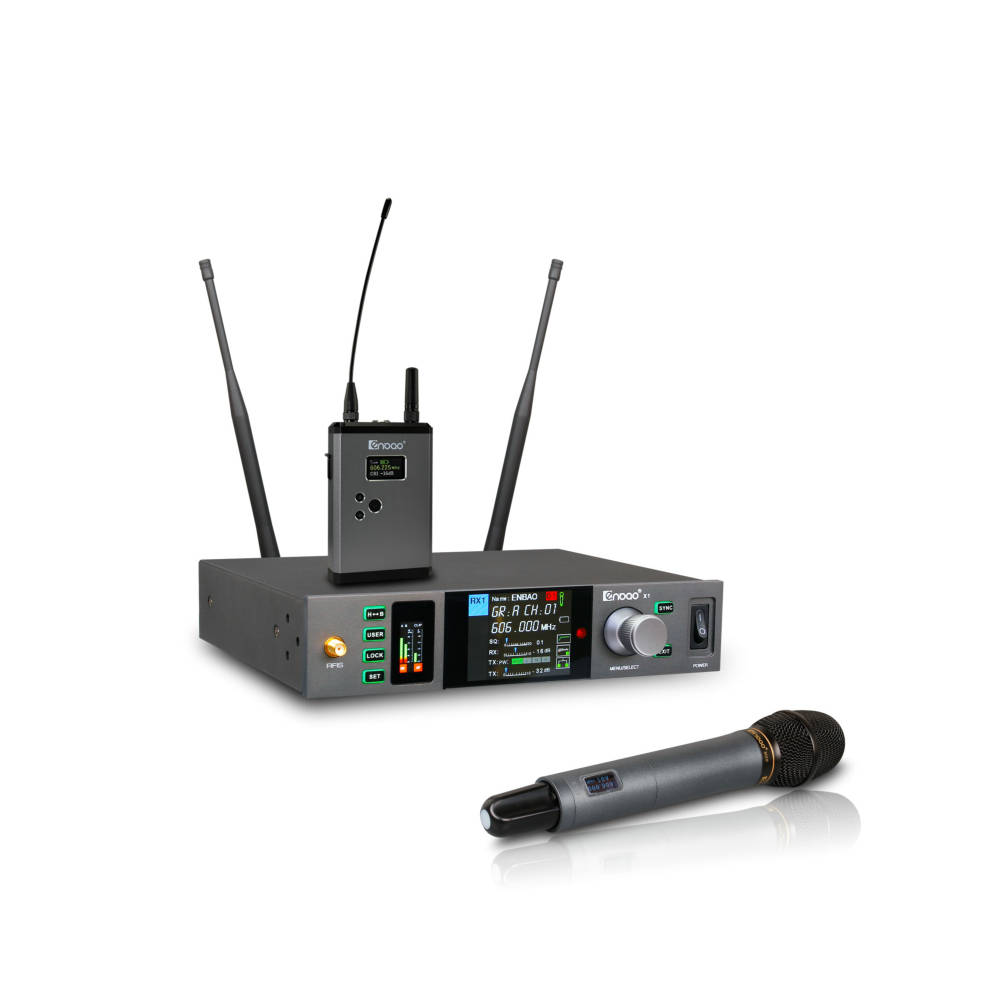

System

• Working Range 300′ (100m) line of sight
• Audio Frequency Response 20Hz-18kHz
• T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu
• Dynamic Range A-weighted >100 dB
• SNR >92dB
• Tone Key Frequency 32.768 kHz
• TX & RX can be given ID name

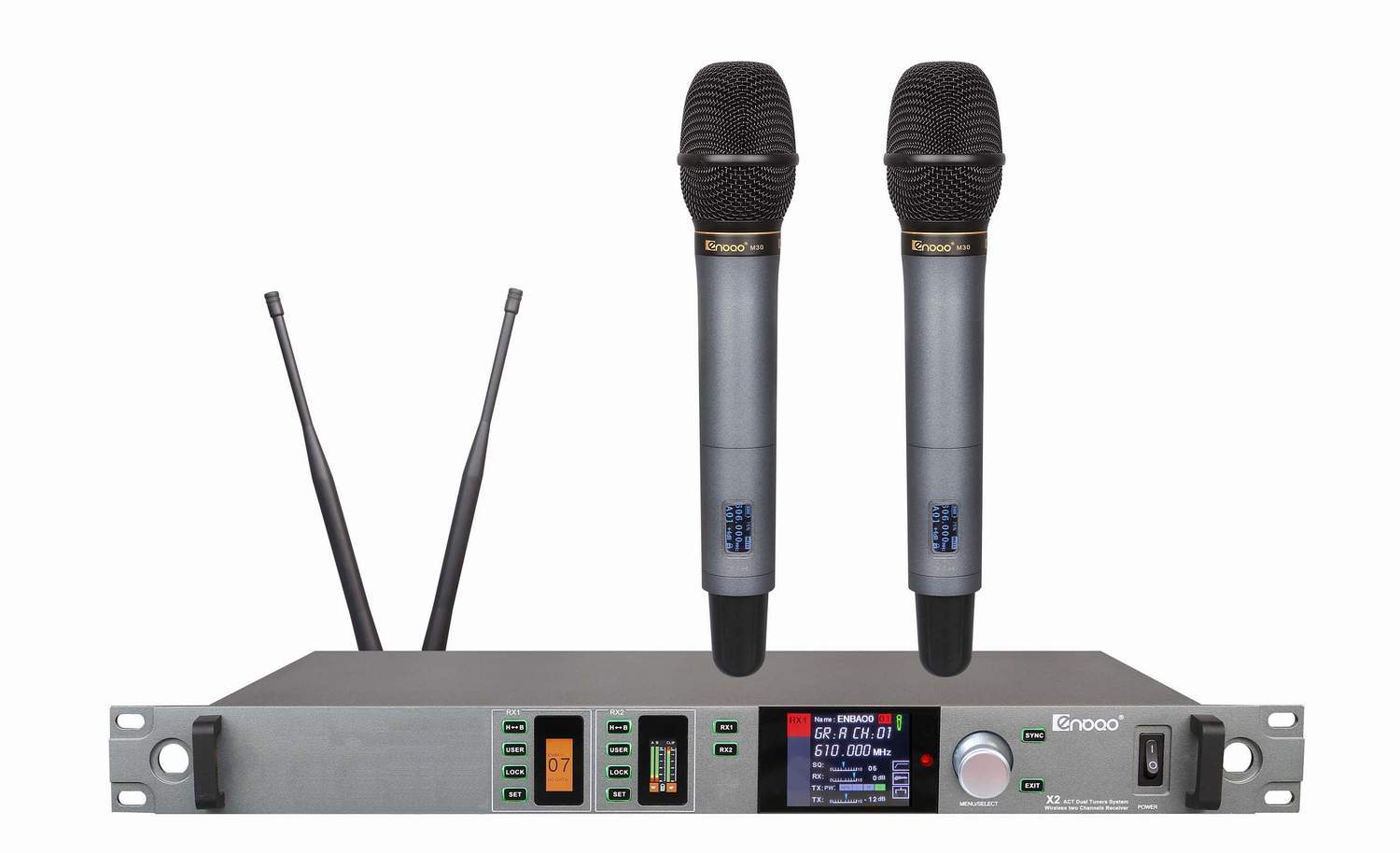

X Receiver

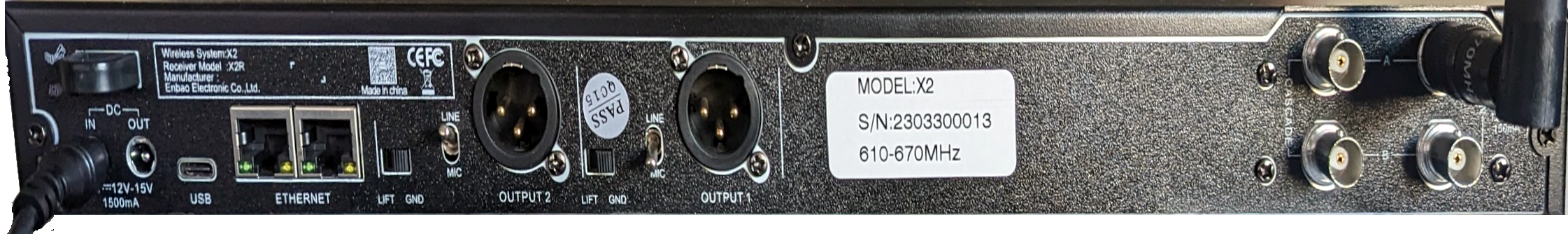

• Audio Output Level Balanced +9 dBu
• Audio Output Impedance  600 Ohms Balanced
• Audio Output Mic or Line switched
• Image Rejection >45 dB
• Operating Voltage 12-19V
• Dimensions (LxWxH) 482x260x43(mm)
• Weight 3.2KG

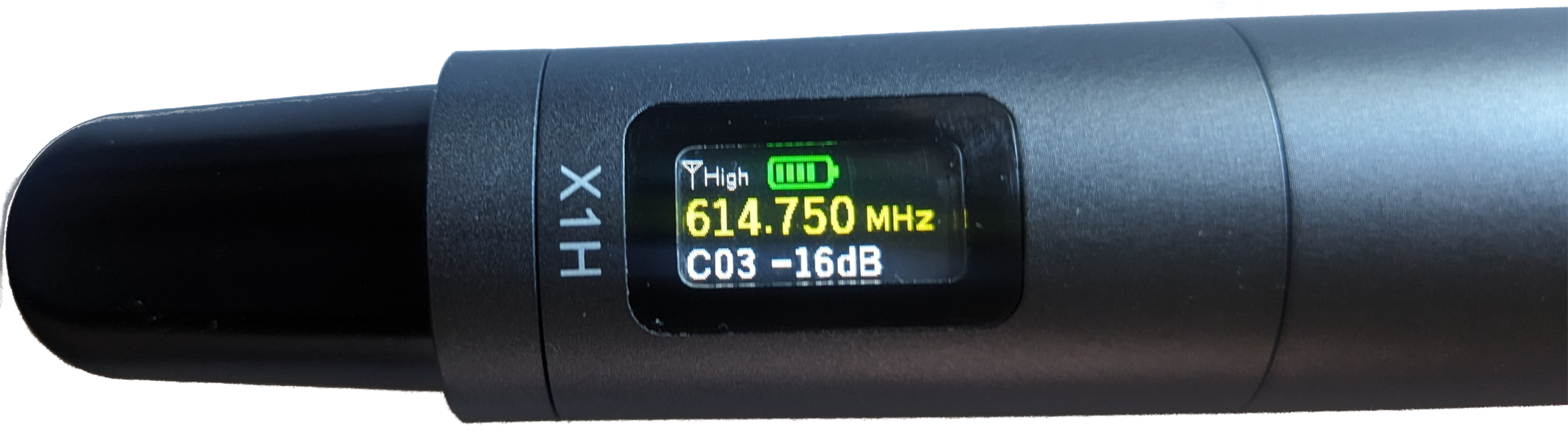

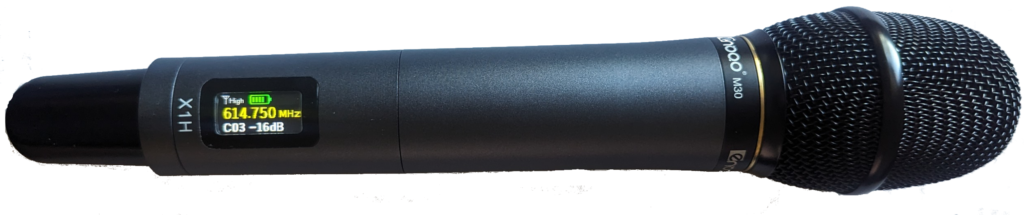

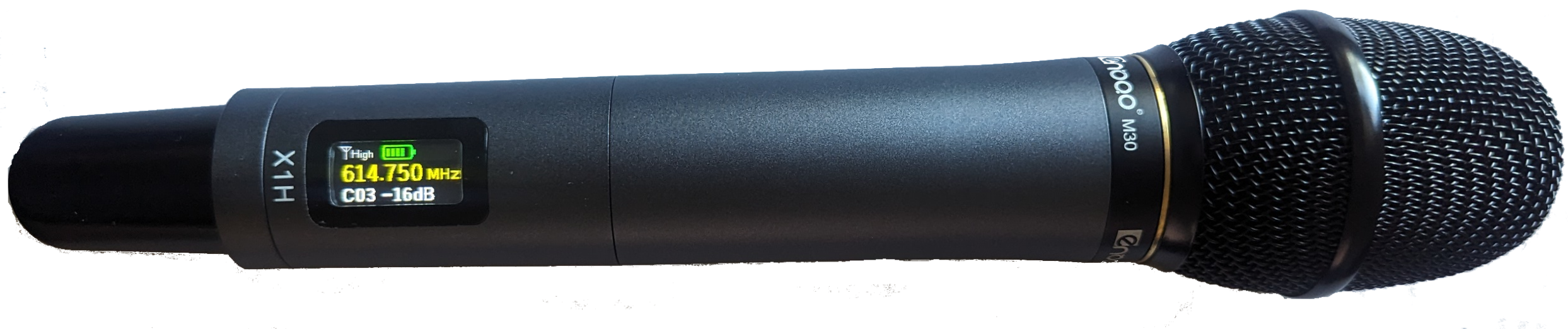

X Handheld Transmitter

• Microphone Element Dynamic
• Input Gain Range 20 dB
• RF Power 10 mw

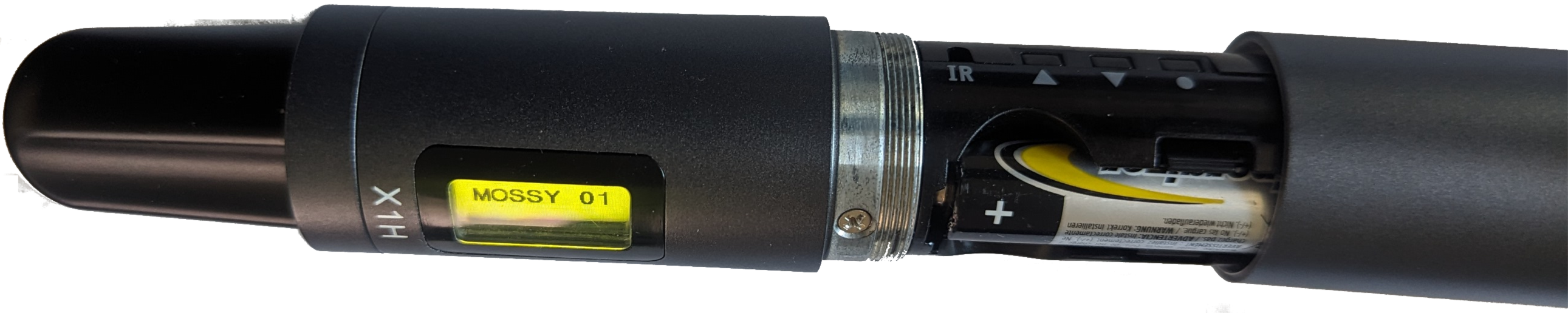

• Power Requirements Two AA (LR6) alkaline batteries
• Battery Life Up to 15 hours
• Dimensions 36 x 245(mm)
• Weight 0.28KG

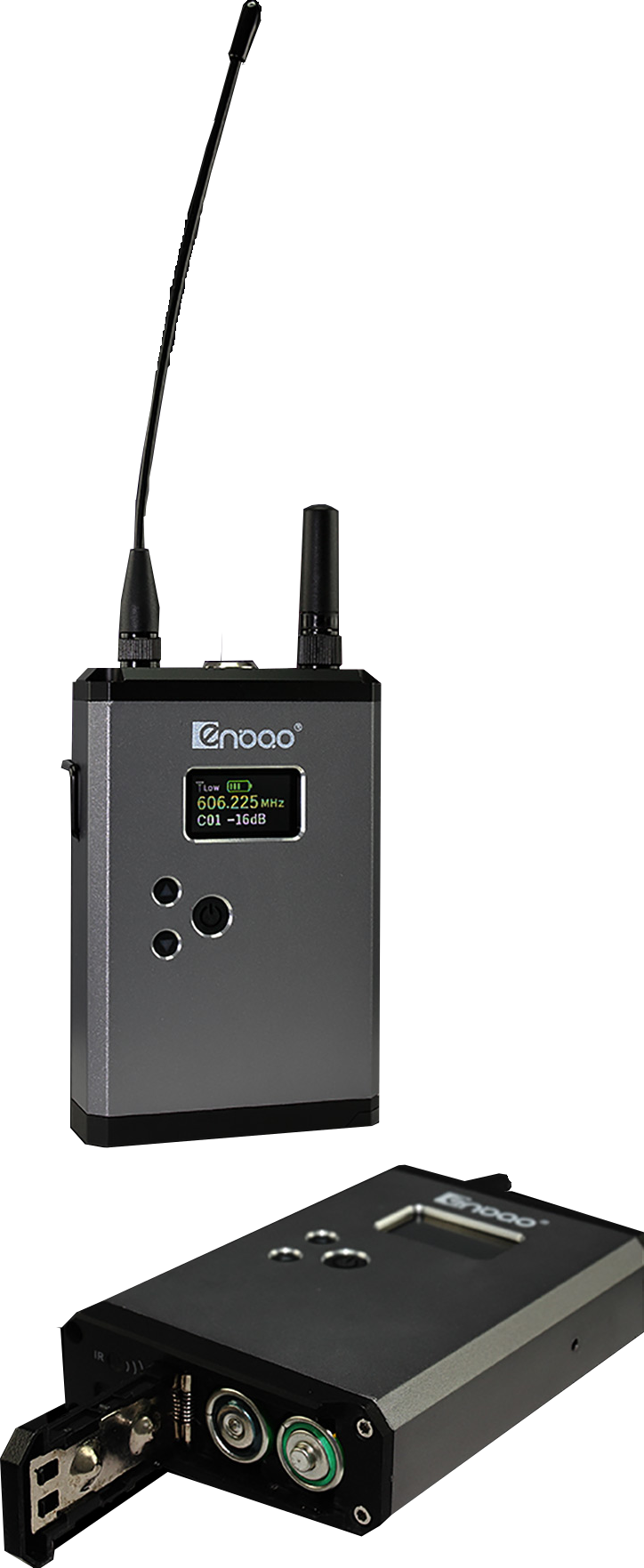

X Belt Pack Transmitter

• Input Connector Mini-XLR(P3)
• Input Impedance 1 M
• Input Gain Range 38 dB
• RF Power 10 mw
• Power Requirements Two AA (LR6) alkaline batteries
• Battery Life Up to 15 hours
• Dimensions 110x65x22(mm)
• Weight 0.11
